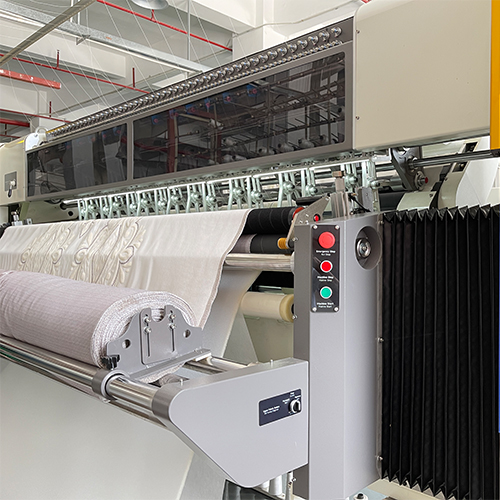

ZLT-WV16 High Speed Computerized Chain Stitch Multi-Needle Macchine Per Trapunte

ZLT-WV16 High Speed Computerized Chain Stitch Multi-Needle Macchine Per Trapunte

ZLT-WV16 High Speed Computerized Chain Stitch Multi-Needle Macchine Per Trapunte

ZLT-WV16 High Speed Computerized Chain Stitch Multi-Needle Macchine Per Trapunte

ZLT-WV16 High Speed Computerized Chain Stitch Multi-Needle Macchine Per Trapunte

Description Our Service Video

Description

.Dimension (LWH)	700049602520mm
Gross weight	6500kg
Needle bar distance	50.8, 76.2, 127mm (5") 76.2, 76.2, 152.4mm (6")
Needle distance	12.7/25.4mm
X-axis movement displacement	304.8mm
Quilting thickness	≤80mm
Stitch length	3-8mm
Voltage	380V/50Hz 220V/60Hz,3-Phase
Main shaft speed	1000-1500rpm
Power	12kW

The height of the press plate is controlled by the CPU for different quilting thickness.
The max. speed is up to 1500RPM, which is one of the highest speed models in the global quilting industry.
Increased 12% of weight compared with the similar type of products in the market: 6.5 tons to keep more stable and less vibration performance when running at high speed.

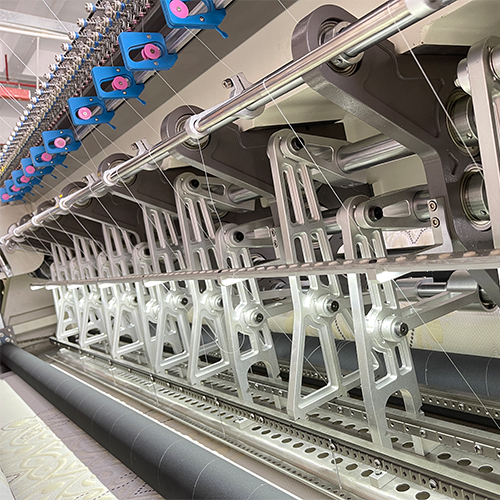

φ35mm main shaft; 040mm beam shaft; the needle bar and press plate shafts are enlarged about 16.7% and 12.5% than those of the common model.

Japanese NSK brand's main shaft bearings, HIWIN brand's linear guides.
Quilting data can be integrated into the factory's MES system.
Remote control system: diagnoses problems and makes adjustments instantly.
Built-in maintenance tips: life span of wearing parts and oiling frequency.
