Dimension(L*W*H)
|
7400*5840*2520mm |
| Gross weight | 5800kg |
| Quilting width | 2450mm |
| Needle bar distance | 50.8,76.2,127mm (5'') 76.2,76.2,152.4mm(6'') |
| Quilting thickness | ≤80mm |
| Stitch length | 3-8mm |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 500-1300rpm |
| Voltage | 380V/50Hz 220V/60Hz,3-Phase |
| Power | 11kw |
◆ Automatic lubrication system (that works on anti friction component, ball screw and linear guideway) enables labor saving and long life of the machine.
◆ Optional: 0.5 inch needle distance. Capable of making more patterns.

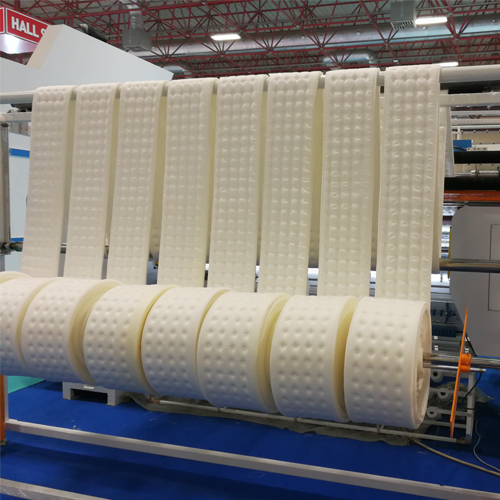

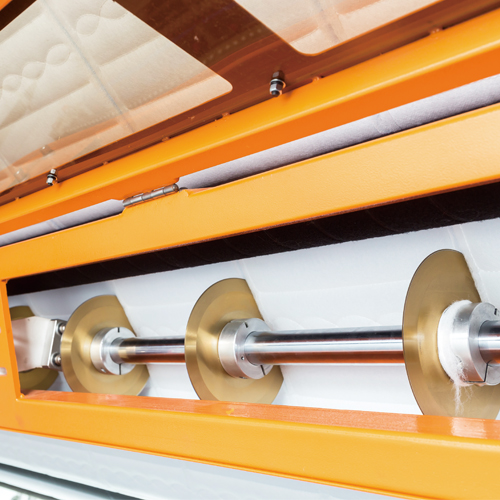

◆ Optional: slitting system. Precisely slitting after quilting for making mattress tape.

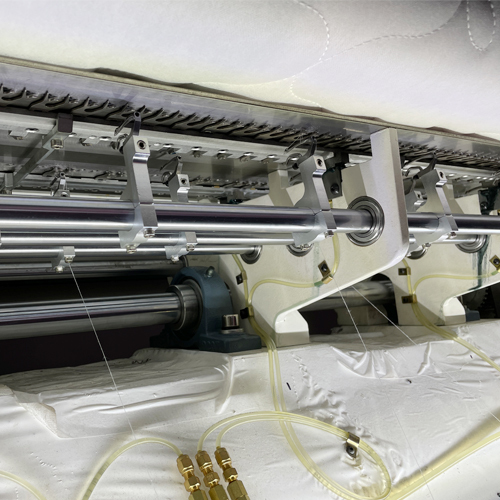

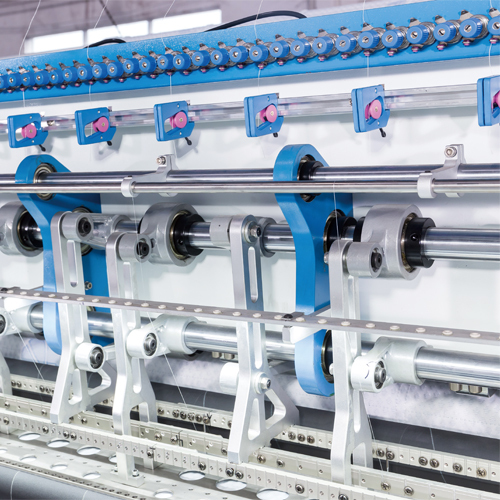

◆ Larger diameter of main shaft and needle bar shaft ensures the stable performance during the machine working in high speed.
Mattress Production
◆ Japanese famous brand bearing and precise casting spare parts are used on the machine, which ensures long life of the machine.
◆ Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
◆ Both continuous patterns and Tack & Jump patterns (360°an180°) are available.
◆ Automatic stop when the pre-set processing length is finished, which is saving labor and d 180°) are available.easy operation.
◆ Controlling system based on Windows, CAD drawing.
