How many mattresses can your workers sew in tape edge station per day determines how much profits will make per day.
Tape edge station is the most challenge station in whole mattress production line.

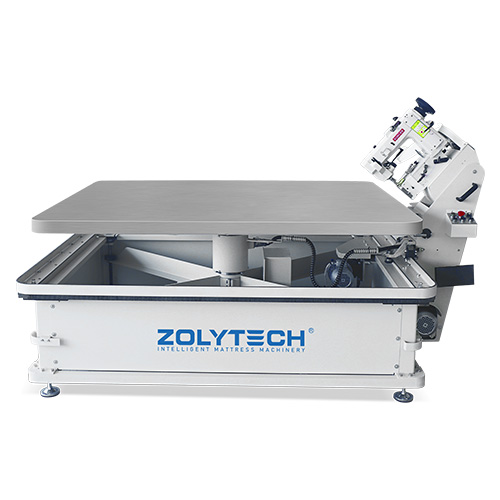

ZLT-TE3A mattress tape edge machine create an efficient solution for mattress production lines.
Machine body welded by robot arms, ensuring high quality and a robust construction for long-term usage.
|
Dimension (L*W*H) |
2052*1700*820mm |
|
Machine table size |
1560*1960mm |
|
Rack workbench lift form |
Screw drive/Electric lift |
|
Chassis workbench lift form |
Electric adjustment of inclination |
|
Chassis drive form |
Reducer |
|
Voltage |
380V/220V 50Hz/60Hz 3Phase |
|
Sewing maximum depression angle |
40° |
|
Table lifting stroke |
0-280mm |
|
Sewing thickness |
30mm-450mm |
|
Gross weight |
600kg |
1.The table can lift and descend in a wide range.
2. The cruising speed of sewing head can be adjusted and can automatically slow down at the corner.

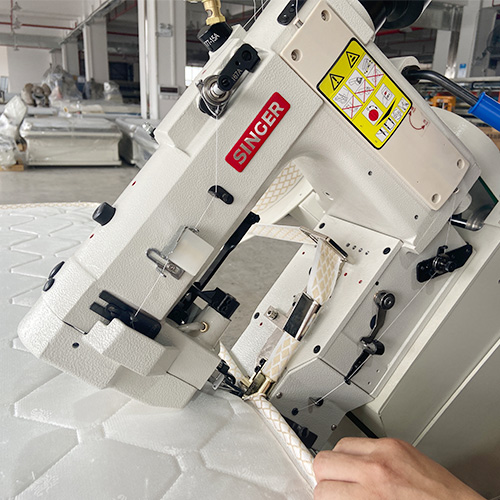

3. The angle of the sewing head can be adjusted to sew mattress of different thickness better.

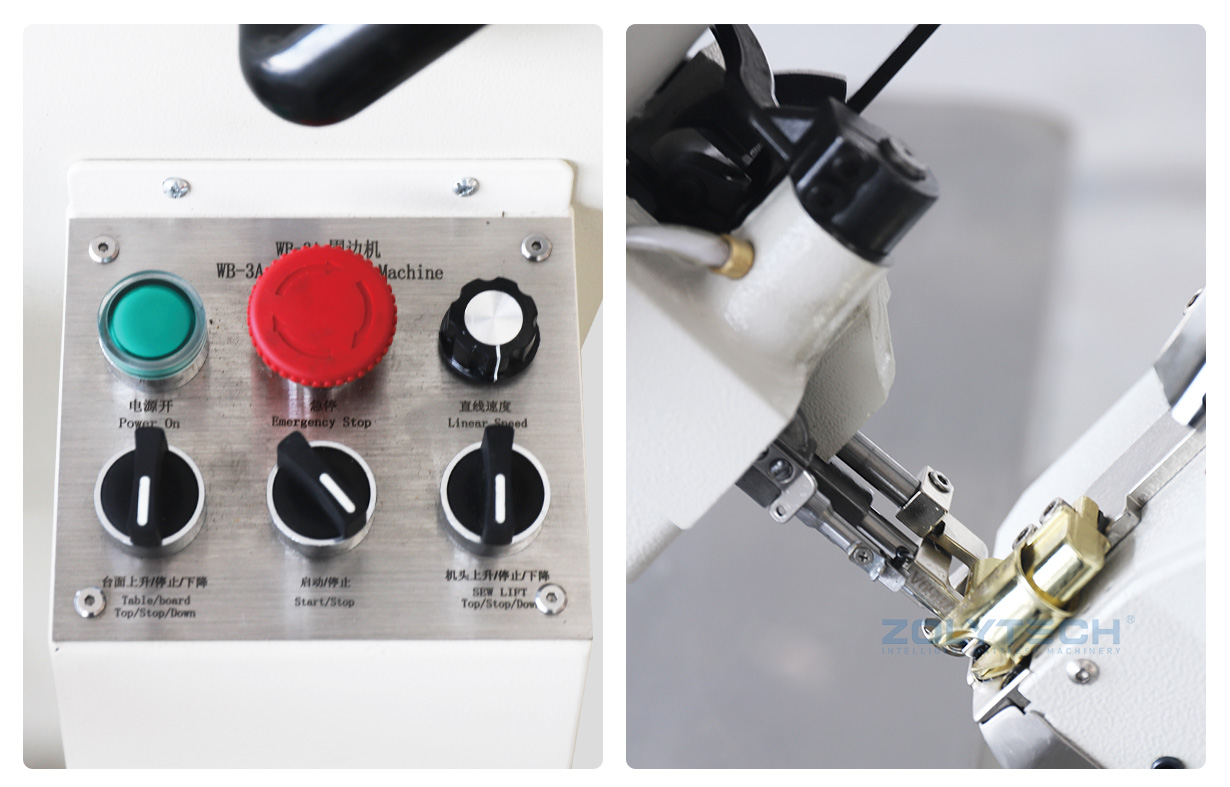

4. Automatic induction device controls motor clutch for easy operation.
