How many mattresses can your workers sew in tape edge station per day determines how much profits will make per day.
Tape edge station is the most challenge station in whole mattress production line.

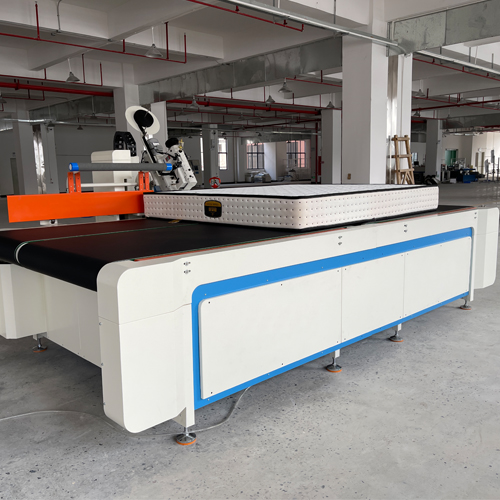

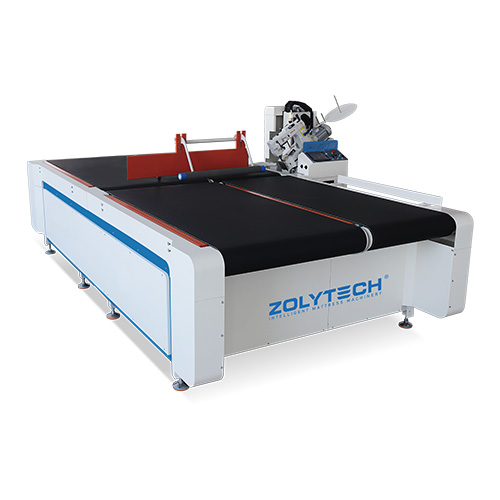

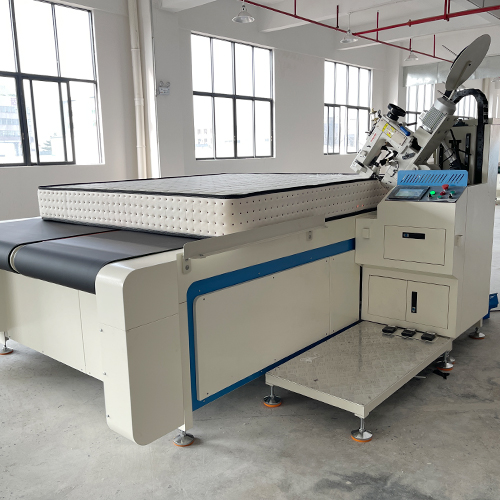

ZLT-TE4A mattress tape edge machine create an efficient solution for mattress production lines.It can process up to 100 pieces per 8 hours.
Machine body welded by robot arms, ensuring high quality and a robust construction for long-term usage.
|
Dimension (L*W*H) |
4150*2910*1680mm |
|
Machine table size |
4060*2000*900mm |
|
Sewing thickness |
40mm-500mm |
|
Head speed |
1400-2300rpm |
|
Voltage |
380V/220V 50Hz/60Hz 3Phase |
|
Head lift range |
0-500mm |
|
Production speed |
15-20pcs/h |
|
Air pressure |
0.6-1.0Mpa |
|
Stitch length |
3mm-7mm |
|
Gross weight |
1500kg |
1.Extra-wide work table makes the operation more comfortable.

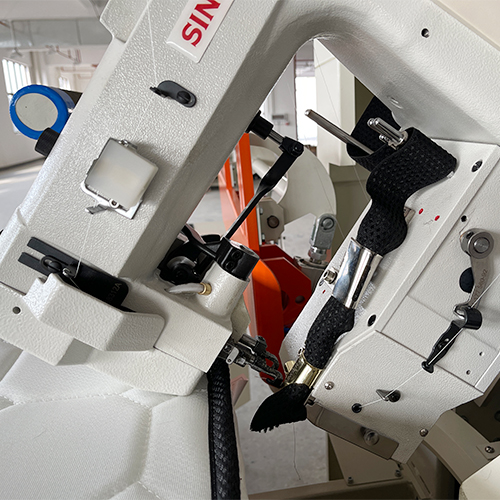

2. The sewing head can lift and descend to sew mattress of different thickness.
3. Increased automation level makes work easier.
