| Production capacity | 100 springs/min. |
| Coiling head | Single wire servo coiling head/Double wire servo coiling hea |
| Working principle | Servo control |

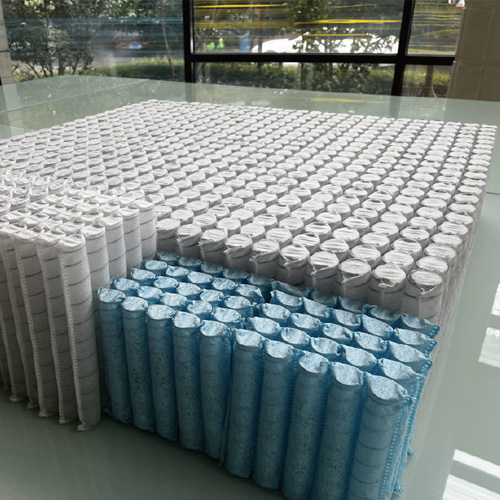

| Spring shape | Standard versions:barrel and cylindrical |
| Air consumption | 0.3m³/min |
| Air pressure |
0.6-0.7 mpa |
| Weight |
Approx.4000Kg |
| Consumption Material Data |
| Non-Woven Fabric | |
| Fabric density | 65～90g/m² |
| Fabric width | 380-620mm |
| Inner dia.of fabric roll |
Min. 75mm |
| Outer dia.of fabric roll |
Max. 1000mm |
| Steel Wire |
|
| Wire diameter |
1.0-1.4mm |
| Inner dia.of wire roll |
Min.320mm |
| Outer dia.of wire roll |
Max.1000mm |
| Acceptable weight of wire roll |
Max.1000kg |
