Dimension（L*W*H） |
10100*3800*1650mm |
|
Gross weight |
3000kg |
|
Quilting width |
≤2400mm |
|
Max. sewing speed |
3000rpm |
|
Production speed |
70-200m/h |
|
Stitch length |
2-6mm |
|
Power |
8.0kW |
|
Voltage |
380V/220V 50Hz/60Hz 3Phase |
|
Quilting thickness |
≤80mm |

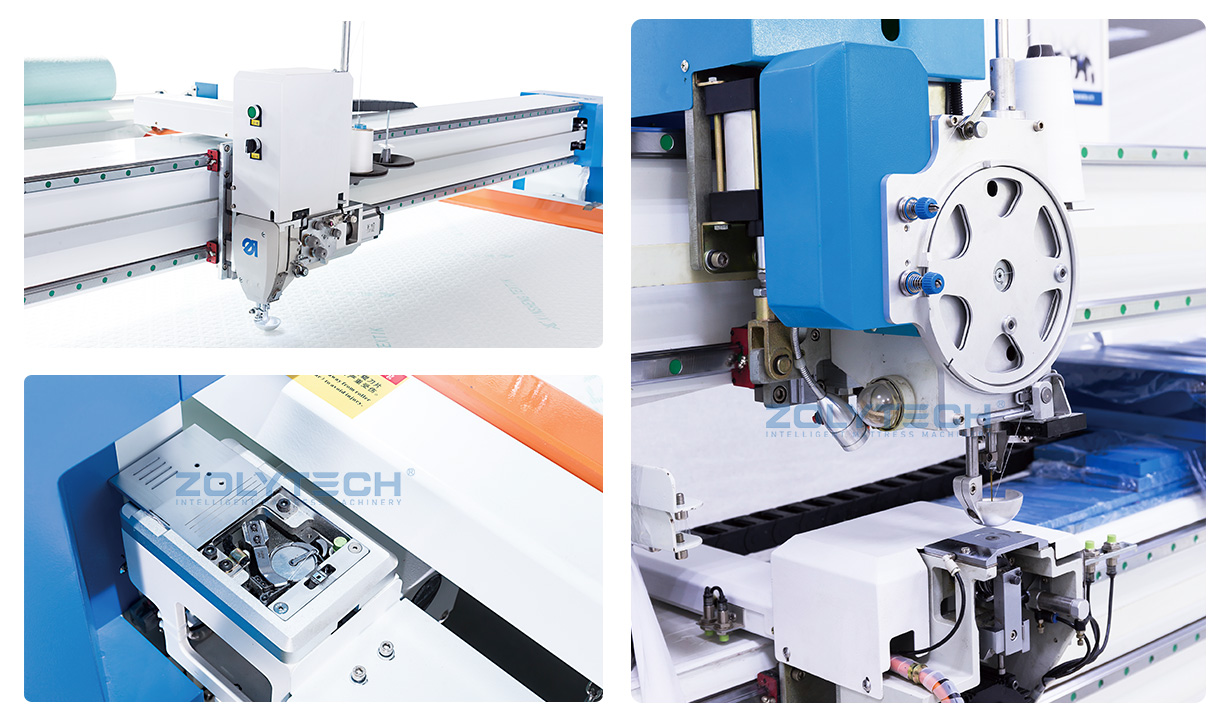

1. Options: DURKOPP type sewing head, the maximum speed up to 3000rpm.
2. Adopt imported large rotary hook, arbitrary jump quilting, automatic thread breaking detection, Pattern compensation available at any point by touch screen.
3. Presser foot can be adjusted according to material thickness.
4. Using a professional customized industrial computer system, it can accurately quilt various complex patterns.
5. Able to quilt 360° jump design, With large memory, able to store more than 100 thousand of patterns.
