| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4800kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-370 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed |
500-1200rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7KW |

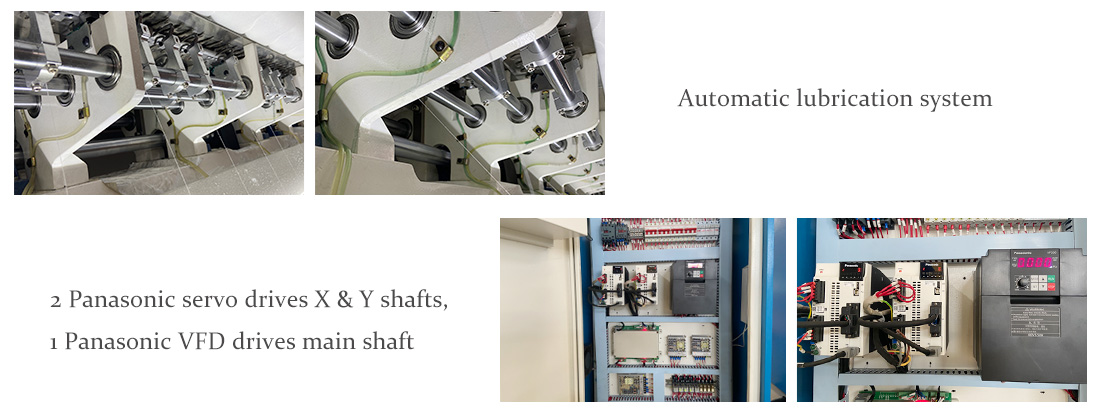

◆The automatic lubrication system saves maintenance labor and ensures the service life of the machine.

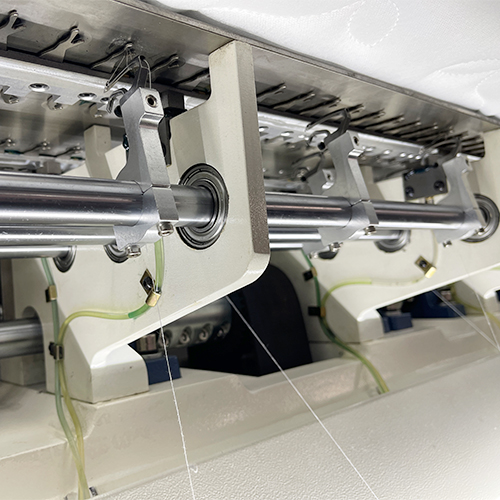

◆The machine adopts bearings imported from Japan and a large number of precision parts to ensure the service life of the machine.
◆Bottom thread and upper thread break automatically stop, upper and lower infrared safety protection.
◆The spindle is driven by Taiwan famous brand frequency converter. The saddle frame and rollers are driven by high quality motors.
◆It can sew continuous patterns and multi-step independent patterns (covering 360° and 180° patterns).
◆The control system is based on WINDOWS operating system. Use CAD software to draw.
◆Automatic shutdown after the preset working length is completed, which saves labor and is easier to operate.
◆Automatic detection of machine running status.
