Dimension（L*W*H） |
12800*3800*1730mm |
|
Gross weight |
3200kg |
|
Quilting width |
≤2400mm |
|
Max. sewing speed |
3000rpm |
|
Production speed |
70-200m/h |
|
Stitch length |
2-6mm |
|
Power |
9.0kW |
|
Voltage |
380V/220V 50Hz/60Hz 3Phase |
|
Quilting thickness |
≤80mm |
1. Exclusive innovation: Add sealing edge function, non shuttle working, out put fabric with over lock two sides.

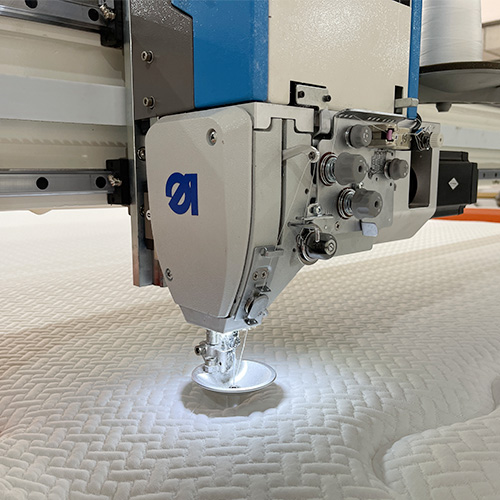

2. Equip with DURKOPP sewing head, to increase working speed, the maximum speed up to 3000rpm.

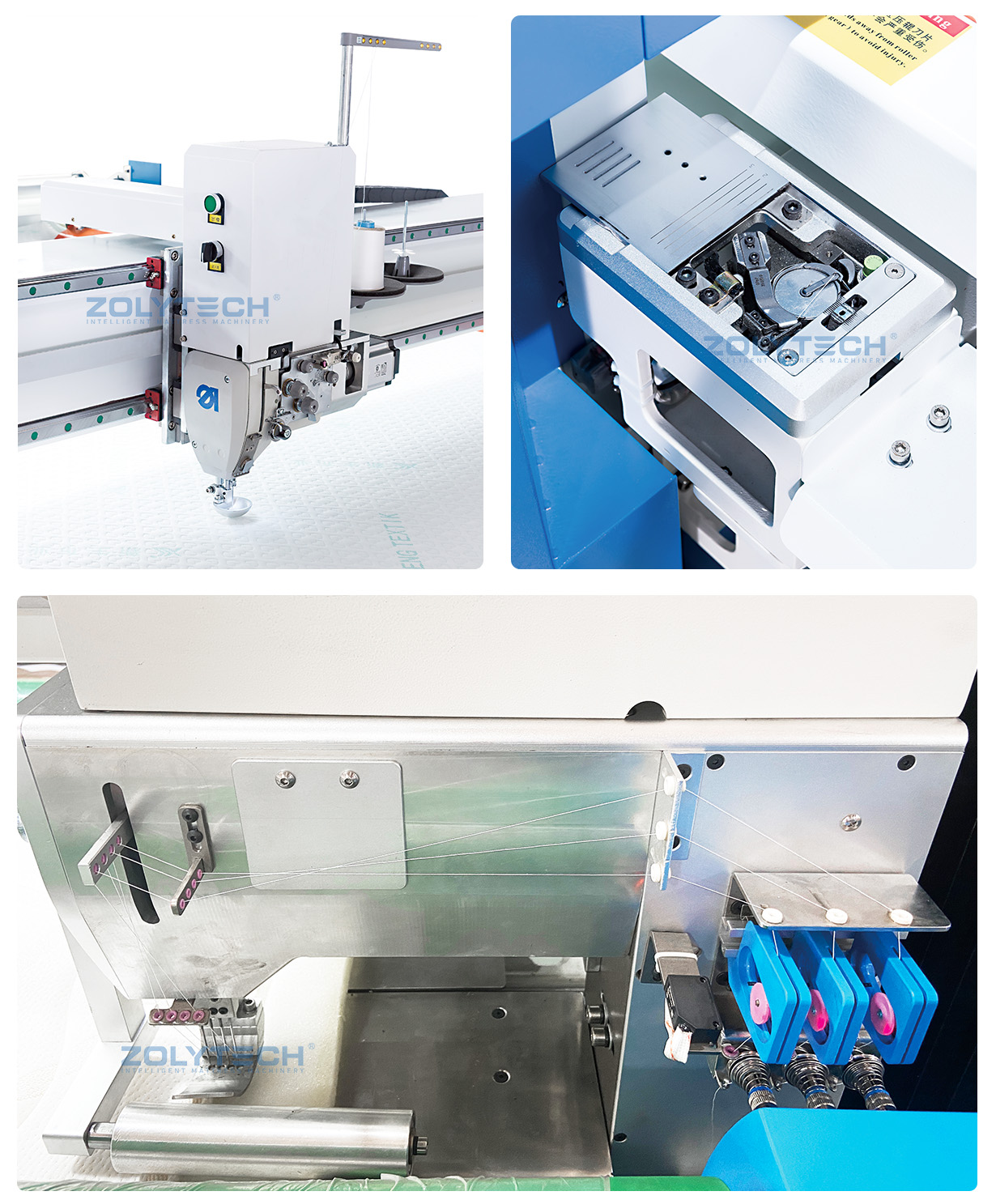

3. Adopt imported large rotary hook, jump quilting at ease, automatic thread breaking detection, Pattern compensation available at any point by touch screen.
4. Presser foot can be adjusted according to material thickness.
5. Using a professional customized industrial computer system, it can accurately quilt various complex patterns.
6. Able to quilt 360° jump design , With large memory, able to store more than 100 thousand of patterns.
