Max rotating speed
|
2500rpm
|
|
Working efficiency
|
30-60 pcs/hour
|
|
Flanging thickness
|
10-100mm
|
|
Flanging width
|
30mm |
|
Stitch length
|
2-6mm |
|
Needle gauge
|
25mm/35mm
|
|
Needle
|
DPX5 22#
|
|
Overall dimension
|
4220*2680*1830mm
|
|
Voltage
|
380V/50Hz 220V/60Hz,3-Phase
|
|
Total power
|
3kw |

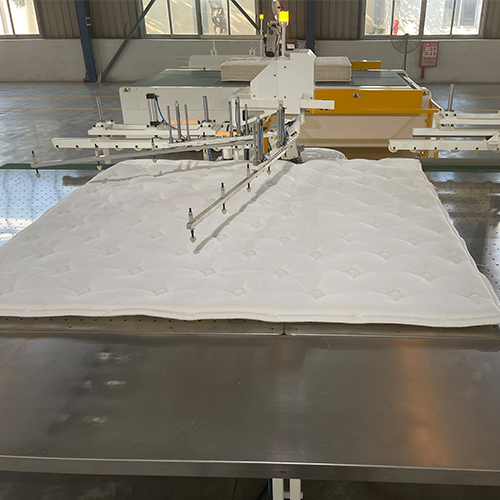

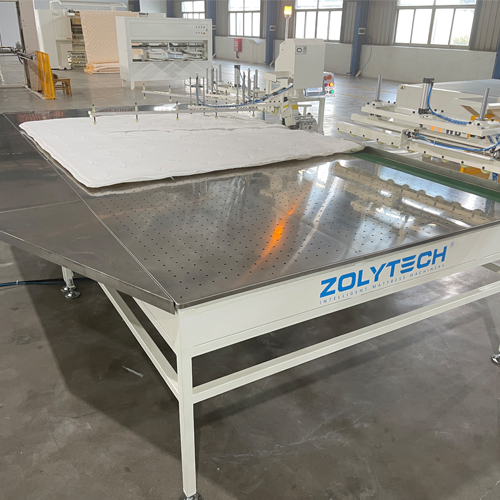

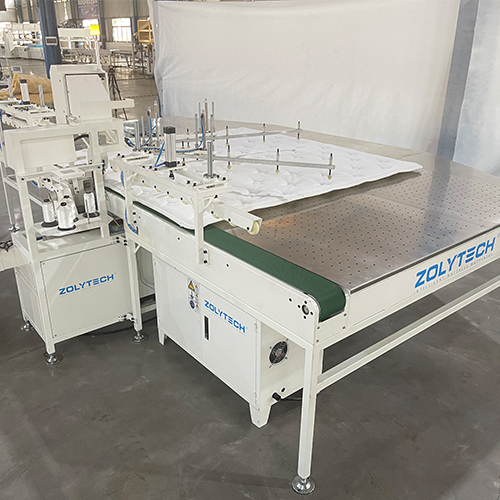

1、Fully-automatic conveying worktable,operating easily, improving the quality of the finished products with high work efficiency.
2、When the fabric rotates, no need to manually push and pull the fabric in order to reduce the labor operator intensity effectively.
3、Automatic non-woven fabric feeding, feeding fabrics accurately when sewing, no slippage between upper and lower layers.
4、PLC program control, full touch screen operation,simple interface operation, easy to operating.
5、Presser foot automatic lifting with pneumatically control. Needle position controlled with precision sensor, Operation stalely with low noise.
